Series 600

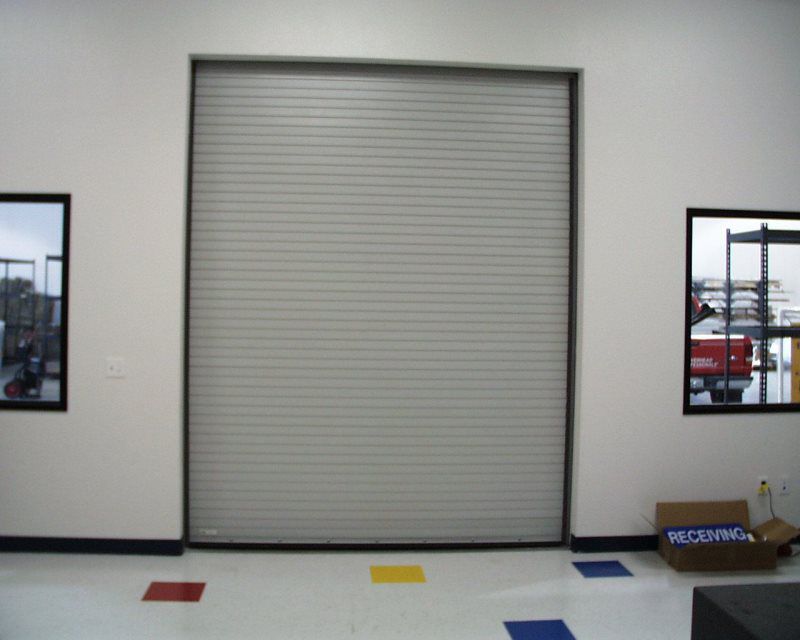

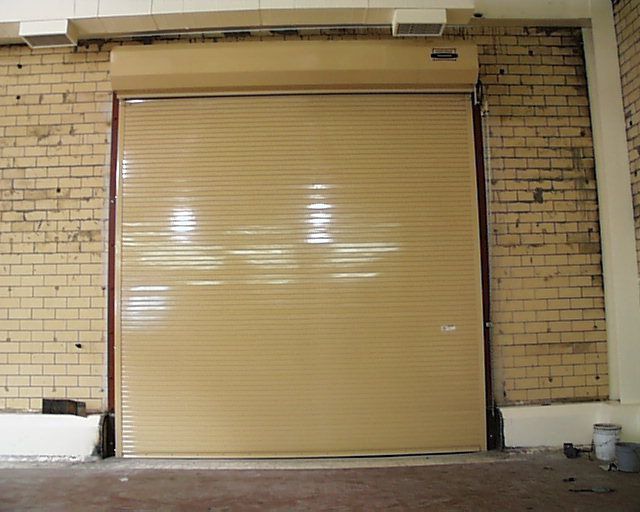

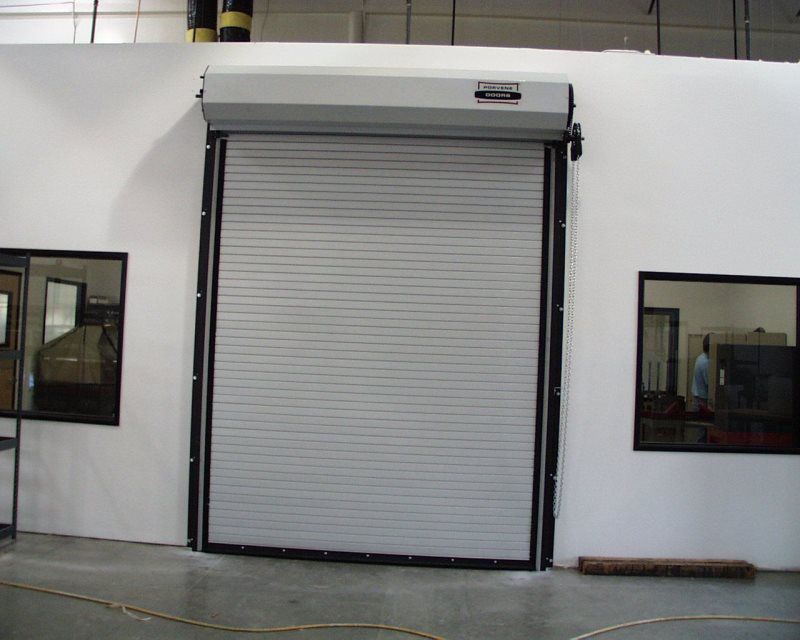

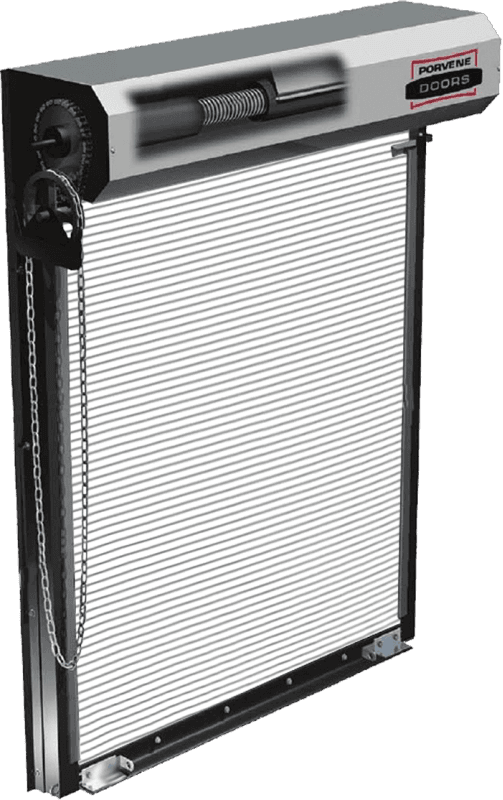

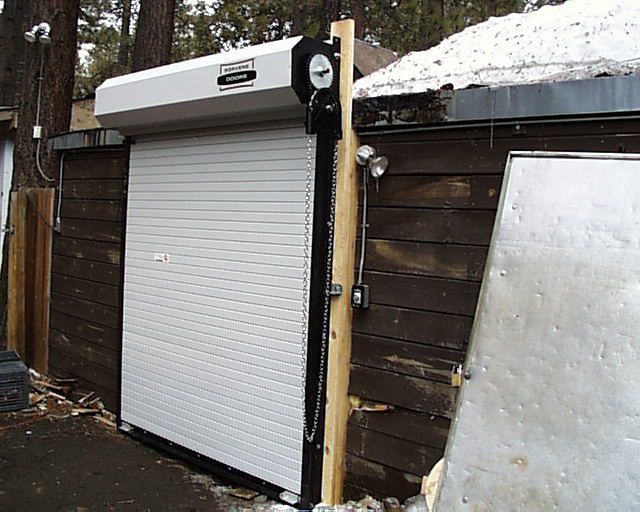

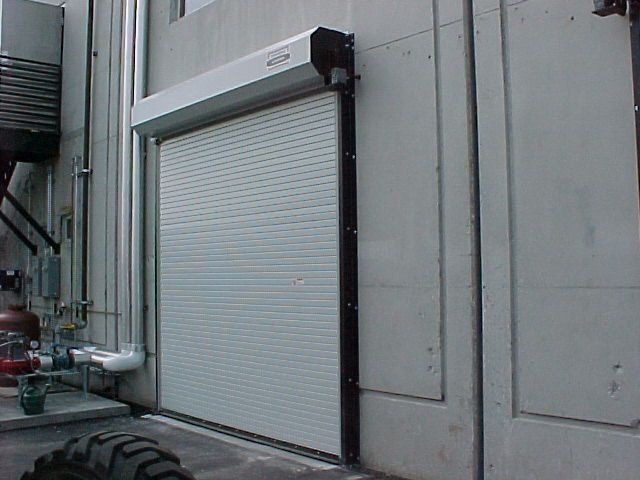

THERM-MASTER STEEL BACKED INSULATED DOOR

AVAiLABLE IN - 22/24 standard or 20/24 optional GAUGE

Standard Items:

  • Insulated Slat Curtain: Environmentally Safe Polyisocyannurate insulating material housed between a 22 gauge front slat and a 24 gauge back slat.

  • Guides: Structual steel wall angle with vinyl jamb weatherseal.

  • Bottom Bar: Two 2″ x 2″ x 1/8″ structural steel angles form a rugged bottom bar assembly. A vinyl bulb astragal helps to conform to floor irregularities and helps guard against weather, dirt, insects and rodents.

  • Pipe Barrel: Continuous minimum 6″ diameter pipe to support door curtain with no more than .03″ of deflection per foot of width.

  • Door Stops: Removable stops located on inside and outside of the guides for added safety.

  • Hood: 24 Gauge galvanized steel with a baked enamel prime finish hood including an 8″ baffle to help seal out the elements.

  • Chain Hoist: Heavy duty #50 roller chain and sprockets combined with a smooth hand-chain provides for safe and efficient operation. Removal of chain hoist makes door Electric Operation ready without further modification or cost.

  • Standard Color: Mohegan White

Insulation: Environmentally safe POLYISOCYANNURATE insulation with reinforcing Aluminum facers adhered to the effective thermal barrier.

U – Factor = 0.185 / R – Factor = 5.4

Meets ASTM –E-84 Smoke developed (55-215)

Sound Transmission Coefficient STC-23

Standard Color Mohegan White

Powder Coating Available in over 200 Colors

Optional Pass Doors

Optional Vision Lites

OPTIONAL ITEMS



• VISION LITES

• CYLINDER LOCKS

• WICKET DOORS

• ELECTRIC SENSING EDGE

• HIGH CYCLE OPERATION

• SLIDE BOLT LOCKS

• PASS DOORS

• ELECTRIC OPERATORS

• ELECTRIC INTERLOCKS

• POWDER COATING-OVER 150 COLORS AVAILABLE
